Advance Paris X-A220 EVO Mono Block

Our new X-A220EVO monophonic power amplifier delivers 220W (at 8 ohms).

A pair of X-A220 Evo units combined with the X-P700 preamplifier form an extremely musical Hi-Fi system.

Our technical expertise combined with the most "audiophile" design of our circuits enables us to achieve top-level performance at a competitive price.

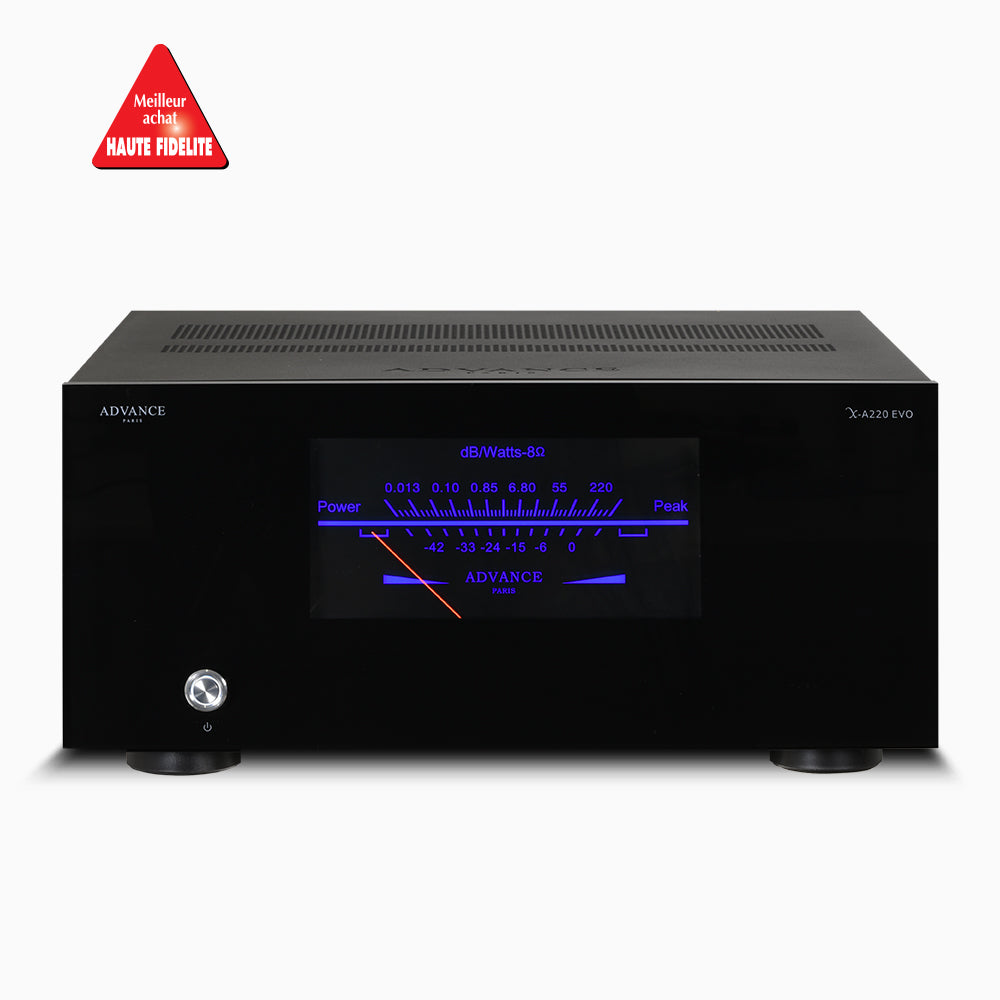

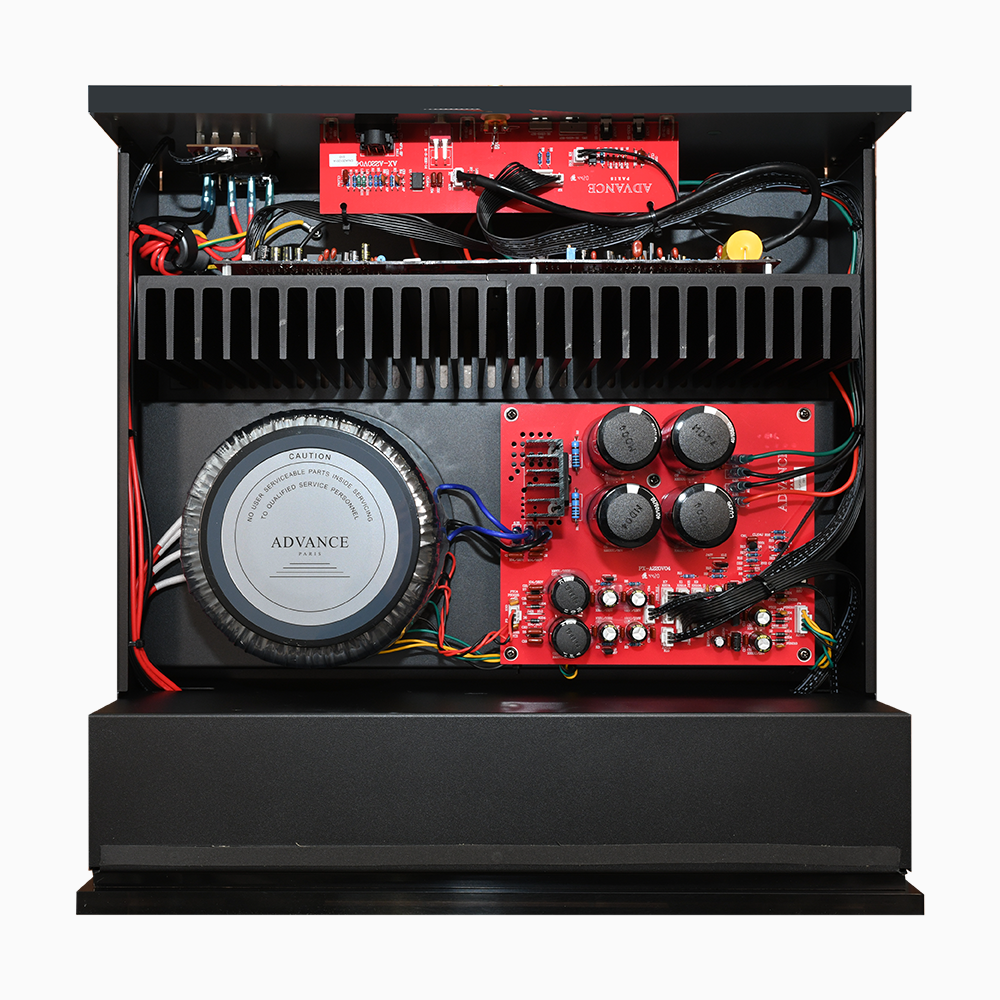

The steel frames are impeccably finished. The addition of methacrylate fronts enhances their successful aesthetics, while adding an important ergonomic dimension, thanks to an imposing vu-meter. The interior layout is rational and compartmentalized. This judicious arrangement of the various sub-assemblies is accompanied by a choice of quality components, soldered on separate PCBs and partitioned by function. The X-A220EVO owes its thickness to the height of its generously dimensioned power transistor heatsink.

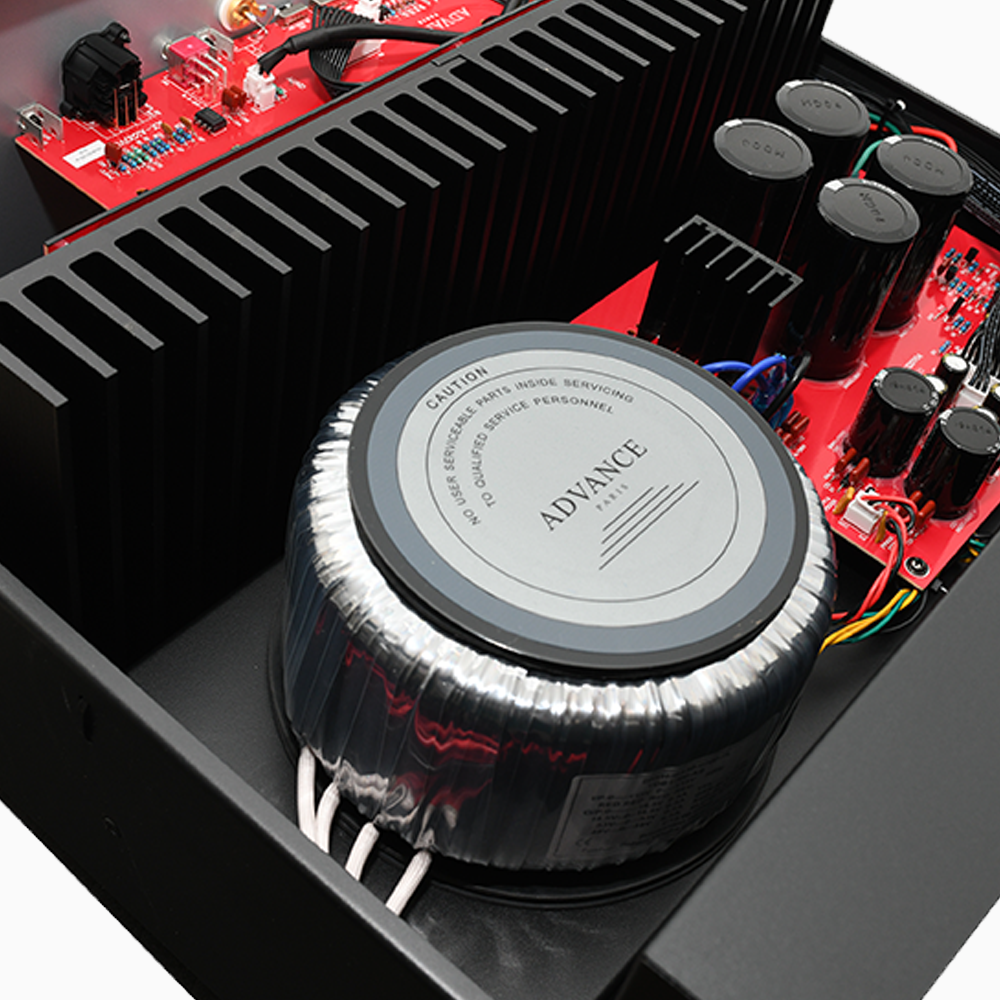

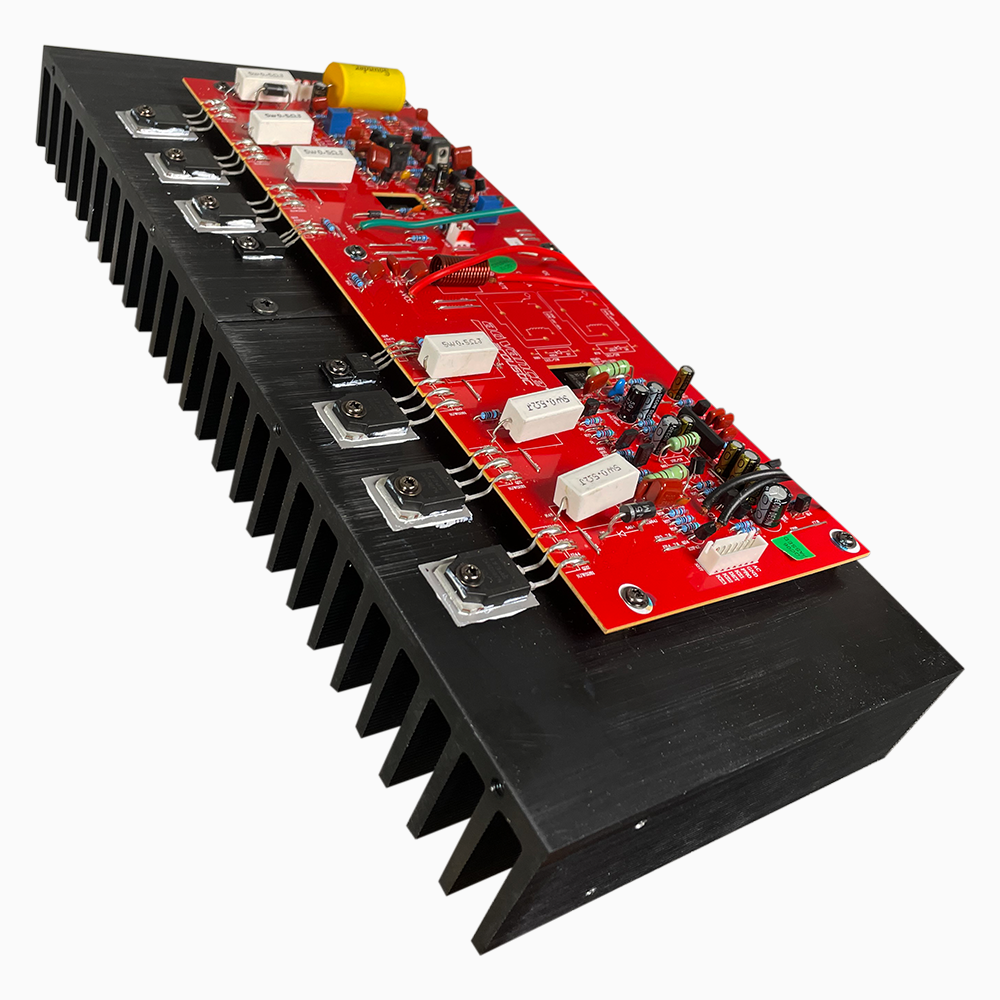

The X-A220EVO features a 700 VA toroidal transformer. After rectification, four 10,000 µF / 80 V capacitors smooth the DC current. The power stages call for a triple push-pull of complementary NJW0281G / NJW0302G transistors, delivering up to 220W (8 ohms) in class AB. The amplifier can operate in two modes, accessed via a switch: when the High Bias function is engaged, the X-A220EVO operates in "class A" on the first Watt, then automatically switches to class AB.

Summary

Output power 8Ω: 1 x 220 W RMS

Output power 4Ω: 1 x 350 W RMS

Bandwidth: 10 Hz - 80 kHz

Distortion: < 0.08%

Signal-to-noise ratio: > 100 dB

Channel separation: > 80 dB

Input impedance Unbalanced: 32 KΩ

Input impedance Balanced: 38 KΩ

Mains voltage: 115-230V

Standby power consumption: < 0,5W

Max. power consumption: 500W

Transformer power: 700W

Transformer: Toroidal

Height: 200 mm Width: 430 mm Depth: 450 mm

Net weight: 21 Kg

Product type: Power block

VU-Meter: Yes
