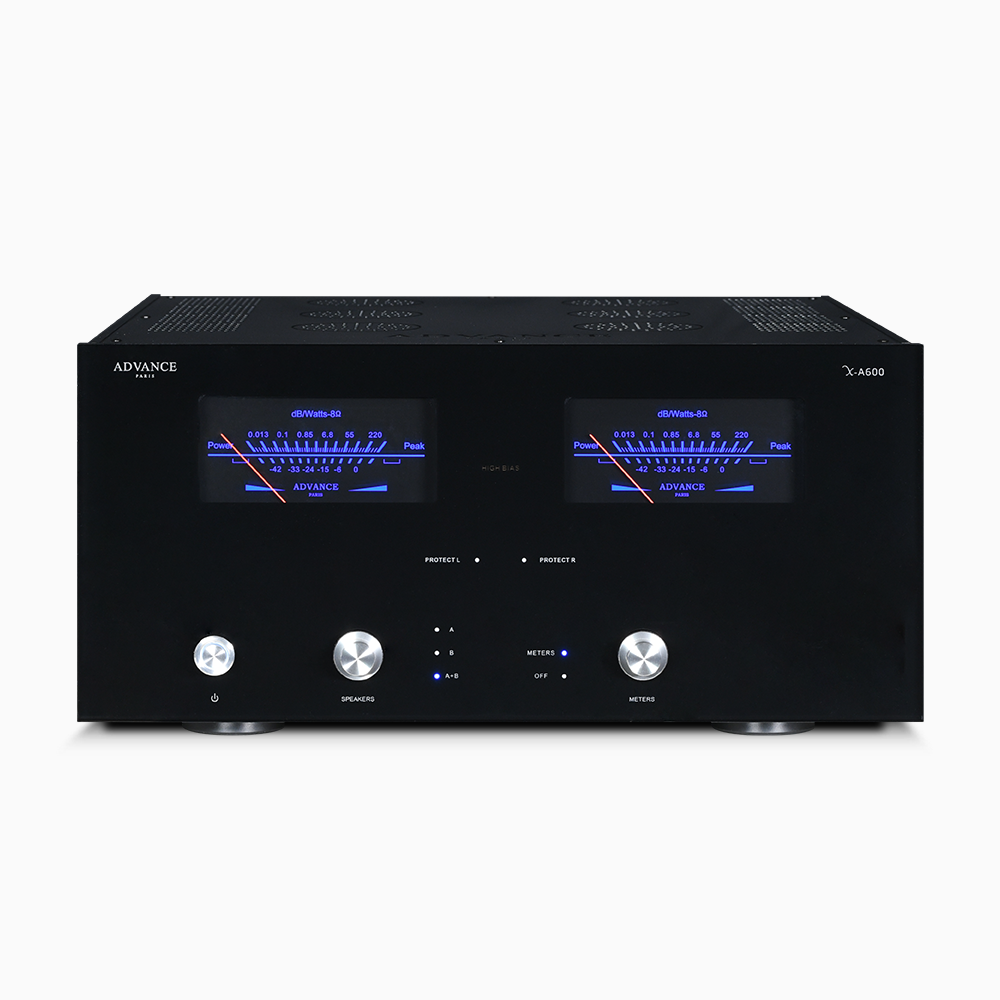

Advance Paris X-A600 Stereo Power Amplifier

Power block!

The X-A600 stereo power block is the new stereo power amplifier from Advance Paris.

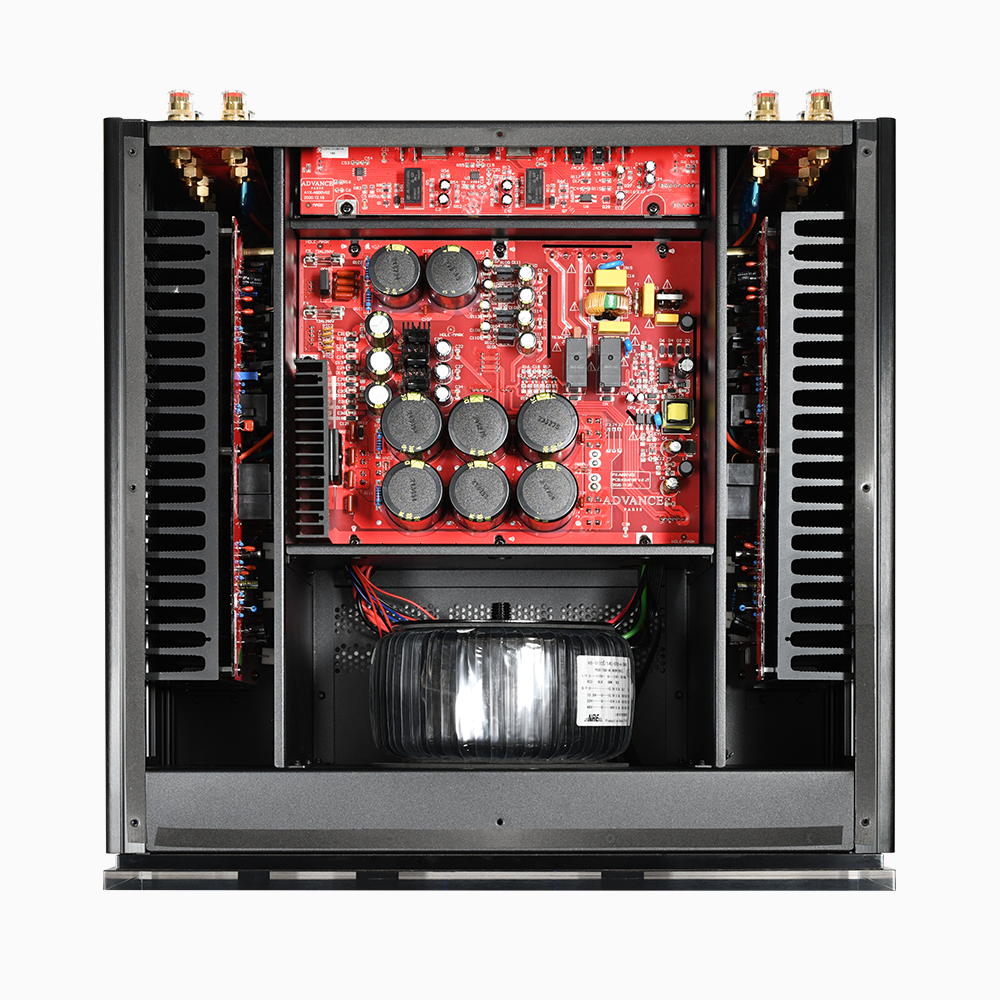

The linear power supply is based on a 700VA toroidal transformer and dʼun set of 6 capacitors for a total of 60000μF.

Combined with "very high current" power transistors (NJW0281G -NJW0302G), we guarantee dynamic sound even under heavy loads. T

he X-A600 delivers 200 W per channel in class AB at 8Ω. A "High BIAS" switch on the rear of the unit enables the X-A600 to deliver the first few Watts in sliding class A. Beyond this power, switching to class AB occurs automatically.

The X-A600 benefits from a highly rigid chassis thanks to its mechanical design. Each circuit is separated from the others by a compartmentalised construction ensuring effective shielding.

The separate power block is an indispensable element of any advanced audio system. Combined with the X-P700 preamplifier, you can build a high-quality audiophile package capable of delicately powering all speakers while exerting absolute control over the woofers.

Summary

Output power 8Ω: 2 X 200 W RMS

Output power 4Ω: 2 X 300 W RMS

Frequency response: 10 Hz - 80 kHz

Distortion: Inf. TO 0.007%

Signal-to-noise ratio: 113 dB

Crosstalk: 108 dB

AC input compatibility: 115V / 230V

Standby power consumption: Inf. TO 0.5 W

Max. power consumption: 575 W

Transformer power: 700 VA

Transformer type: Toroidal

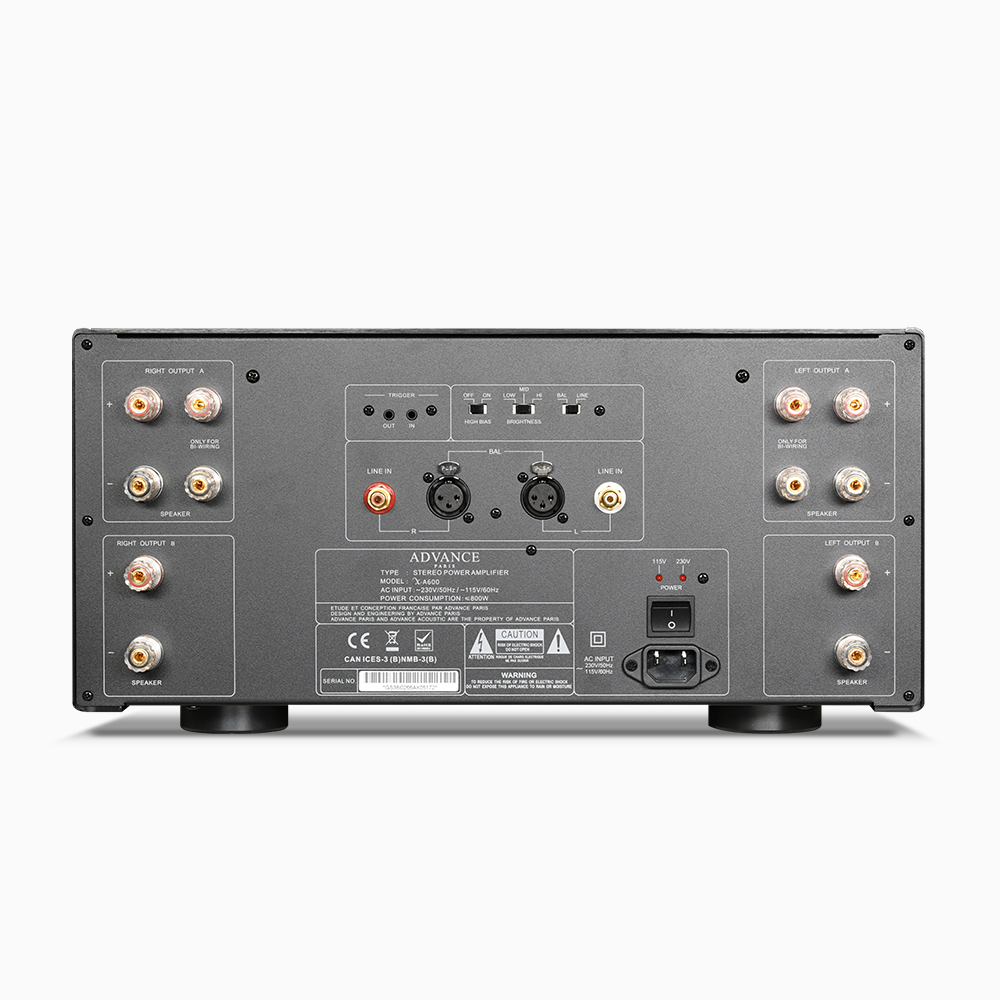

Inputs: LINE level on RCA and XLR sockets Input selection (RCA / XLR)

Rear panel selector Outputs: Bare cable, Banana plugs, Forks

High-Bias setting: Yes

Brightness adjustment VU-Meter: Yes (ON / OFF / Low / Medium / High)

Remote control: No

Trigger socket: 2 (IN / OUT) 12V

Height: 210 mm Width: 431 mm Depth: 464 mm

Net weight: 25 kg

Gross weight: 30 kg

VU-Meter: Yes
